One of the chief differences between a fire rated exit device and a non-fire-rated exit device is called the “dogging” feature. A dogging feature allows the user to “dog the bar down” using a hex wrench or standard key, leaving the door unlatched. Since fire rated devices must always positively latch, they never have a dogging feature
To Dog

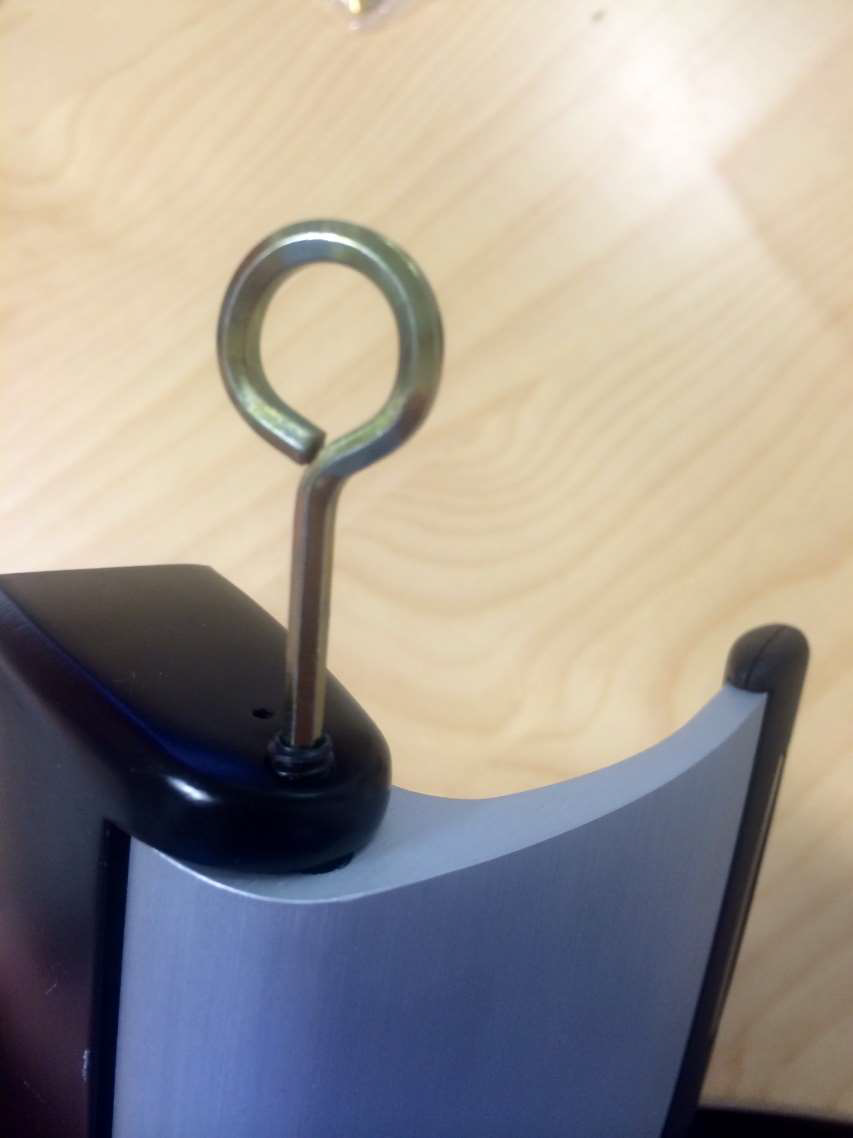

While depressing handle use a 1/8 allen key to drive set screw into the paddle until snug(approximately 2 rotations, clockwise).
To Undog
While depressing handle use a 1/8 allen key and rotate dogging screw (approximately 2 rotations, counter clockwise until paddle moves freely).
