Adams Rite have changed the deisgn of the MS2200 lock case over the years. Follow this guide when you need to replace an old style lock.

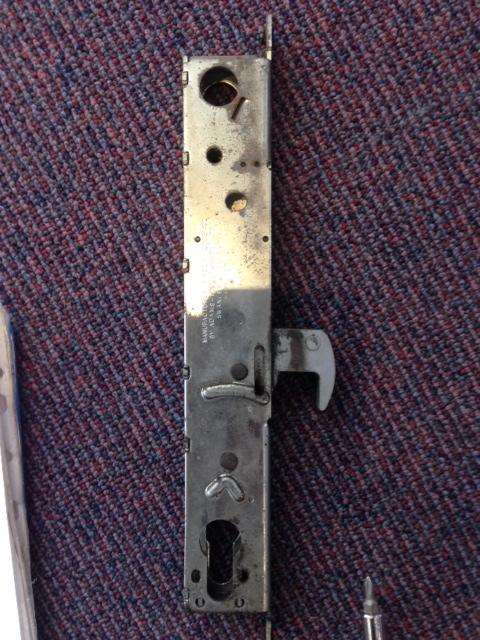

1.The 2200 series originally had a forend of 265mm

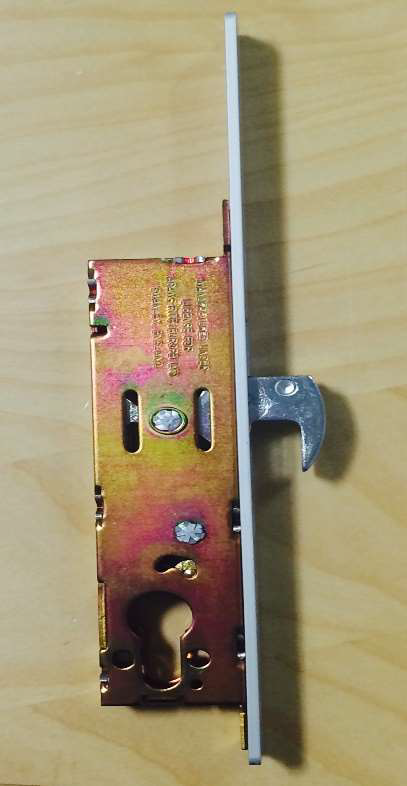

2.The latest model has a forend of 195mm

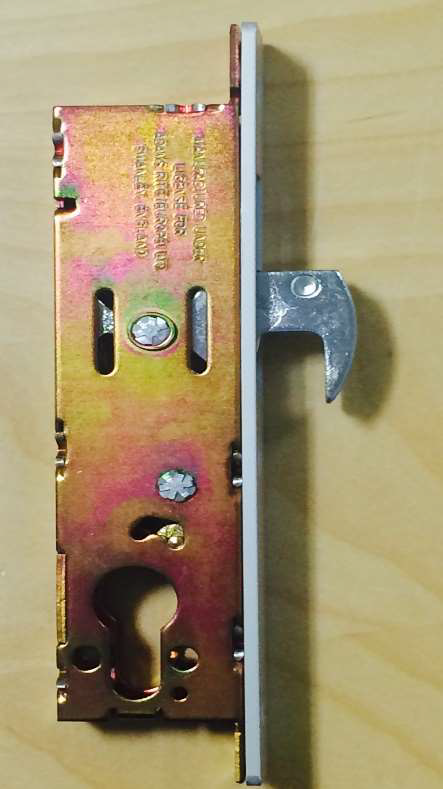

3.When replacing the older model use an Extended 265mm faceplate which will attach to the current 195mm forend to cover the original hole.



Part Numbers
Lock - https://www.duffells.com/adams-rite-2200-euro-hookbolt-case.html
Faceplate – https://www.duffells.com/adams-rite-ms2200-hookbolt-faceplate.html
Note: When measuring the backset you must include faceplate as well as forend
